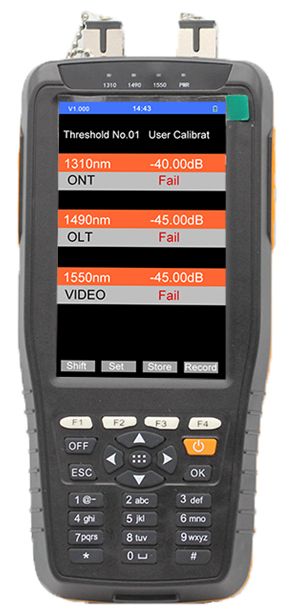

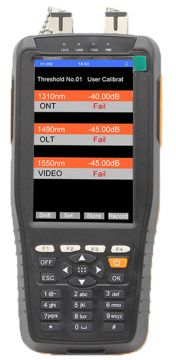

PON tehomittari TC98B+OPM+VFL

PON tehomittari 1310/1490/1550nm

I. INTRODUCTION

TC-98 PON Power Meter is specially designed for PON network construction and maintenance which can be connected between OLT and ONT. The voice, data, video signal (1310/1490/1550) online can be measured synchronously and optical power value (1310/1490/1550) can be displayed with this meter. It’s a useful site test tool for the engineers of PON network and maintenance operators.

This PON Power Meter also integrates optional optical power meter and VFL functions.

II. MAIN FEATURES

-- Handheld, easy to operate

-- Can test 3 wavelengths’ power of PON system synchronously: 1310nm, 1490nm, 1550nm,

-- Can test the burst mode signal of 1310nm

-- Optional optical power meter and VFL functions

-- True color screen

-- Friendly operation interface, human message management and operation function

-- Supply 10 groups of threshold values for operator’s choice, analyze and display pass and fail status

-- Relative value choice and edit function

-- Can save 1000 records and upload the records through USB to management software

-- Can set the threshold value, upload data, and calibrate wavelength through management software

-- Auto shut off (according to set value)

-- Auto backlight off (according to set value)

-- 6600mAh Lithium battery

-- Power saving design (low voltage self check and power off)

-- Real-time clock display
